Question 1

How does a bulk material heat exchanger work?

Accepted Answer

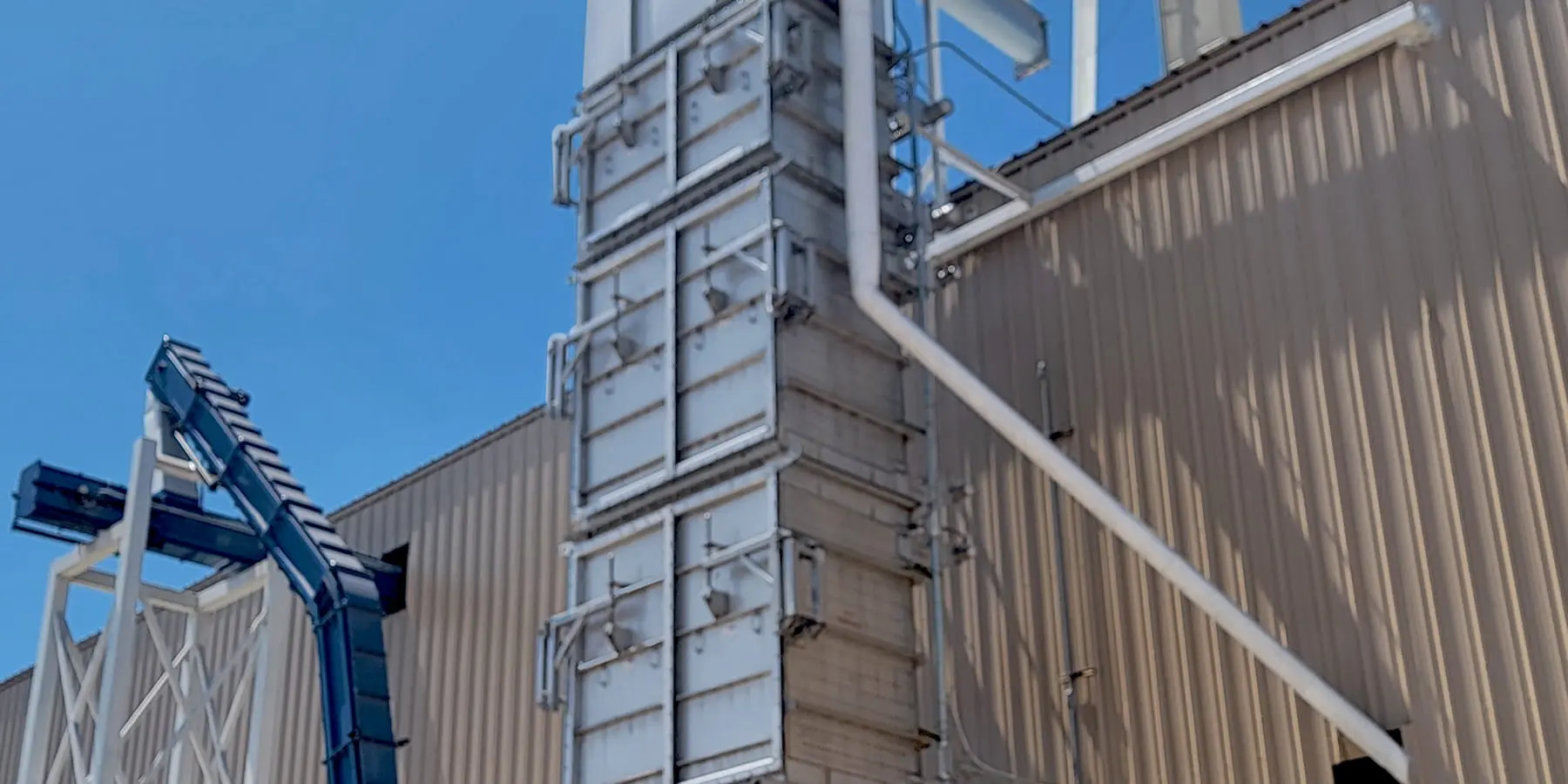

Carrier's Bulk Material Heat Exchanger (BMHX) uses a gravity-fed design to move bulk material slowly downward through an array of thermal plates. As the material passes across the plates, heat is transferred by direct conduction between the material and the plate surfaces. Water or another heat transfer fluid flows internally through the plates, either absorbing heat from the material to cool it or delivering heat to warm it. Because the material and the thermal fluid never come into direct contact, there is zero risk of contamination and no need for dust collection or scrubbers.

Question 2

What types of materials is the BMHX suited for?

Accepted Answer

The BMHX is well suited for bulk solid materials that require heating, cooling, or drying without exposure to process air. It is particularly effective for oxidation-sensitive materials, hygroscopic materials that would absorb moisture from an air stream, contamination-sensitive food or pharmaceutical ingredients, and materials with strict emissions requirements. For materials that do not flow freely through the plate array, vibration or small amounts of gas flow can be added to assist mass flow, which is evaluated during test runs at Carrier's Louisville facility.

Question 3

What are the main advantages of indirect thermal processing compared to fluid bed drying or rotary drum systems?

Accepted Answer

Unlike fluid bed dryers and rotary drums, the Carrier BMHX uses no process air in the heat transfer section. This eliminates dust generation, removes the need for emissions control equipment, and makes the system inherently suited for oxidation-sensitive, hygroscopic, or contamination-sensitive materials. The closed environment also means performance is consistent regardless of external conditions such as ambient temperature or humidity. The vertical gravity-flow design requires a significantly smaller plant footprint than most fluid bed or rotary systems, and the absence of moving parts in the heat exchange section results in low maintenance requirements and reduced operating costs.

Question 4

Can the BMHX be operated with an inert gas atmosphere?

Accepted Answer

Yes. Because no process air contacts the product in the heat exchange section, the unit is well suited for applications requiring controlled atmosphere processing. For materials that are sensitive to oxygen exposure, the housing can be configured for inert gas purge, maintaining a closed, controlled environment throughout the thermal processing step.

Question 5

How does Carrier determine the right BMHX configuration for a specific application?

Accepted Answer

Carrier conducts test runs at its Innovation Center in Louisville to establish the key parameters needed to size and configure the BMHX for a specific material. A properly conducted test run determines the energy balance and heat duty under test conditions, the effective overall heat transfer coefficient for the specific material, and the residence time required to achieve the target temperature or moisture specification. These parameters drive the equipment sizing and design, ensuring the final system is engineered to meet the exact process requirements of the application.
