Barrel Horse^TM Shakeouts

Struggling with inconsistent casting quality and sand separation issues?

Improve casting quality with consistent sand removal with Carrier barrel horse shakeouts

Simultaneously separate, cool, and condition mold sand from castings

Reduce downtime and maintenance costs

Proven One-Step Solution to Casting Damage & Sand Mixing

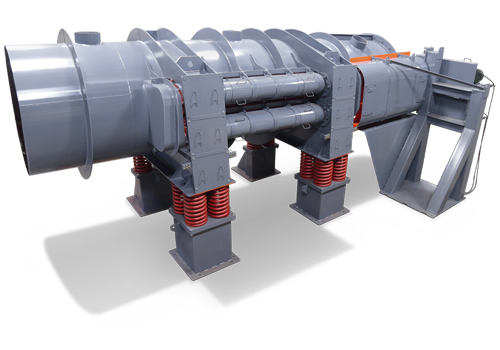

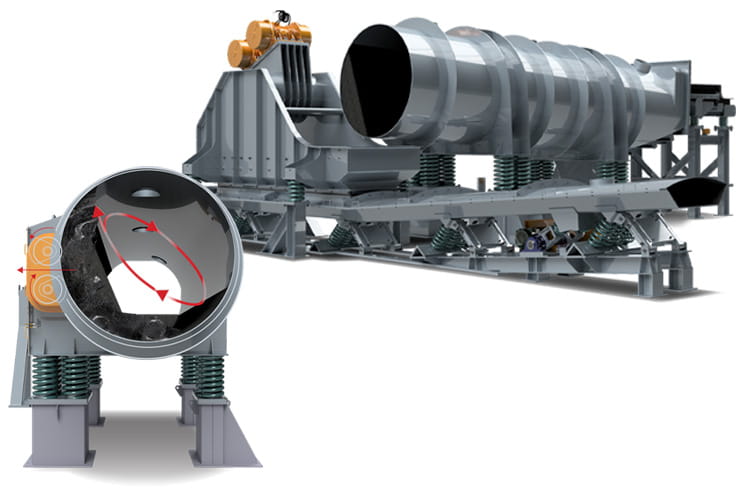

The Carrier Barrel Horse shakeout machine is a proven one-step solution to casting damage and sand mix problems. Unlike conventional rotary shakeouts, which lift and drop castings, the Barrel Horse shakeout action allows castings to swim in the sand bed, constantly blending via vibratory motion. Through this agitation and mixing method, sand lumps are reduced for a homogeneous return sand.

Optional water addition systems and gas-fired burners provide controlled, simultaneous cooling, and moisture conditioning. This results in a perfectly homogeneous and cooled molding sand that is ideal for recycling and re-mulling.

Request a Quote

Features & Benefits

One-step processing design for treating and sizing return sand reduces the need for secondary downstream processing and saves energy costs.

Barrel design produces a vibrating sand bed to clean castings while delivering efficient heat transfer for casting cooling and sand conditioning.

Moves sluggish materials and cleans sand from castings that are typically difficult to clean with no overflow.

Sand blending action creates agitation and mixing of the sand to return a homogeneous sand for reuse.

Séparation complète des pièces coulées du sable avec une réduction supérieure des grumeaux.

Gentle vibration technology protects casting quality.

Isolates dynamic forces and minimizes support requirements.

Vibratory motion and positive conveyance moves the sand and castings toward the discharge end, avoiding tangled castings or blockages.

Equipment Options & Accessories

Incline or Horizontal Configuration

The Barrel Horse design works for inclined or horizontal material flow, which helps when integrating into an existing production line with limited floor space or particular layout constraints.

Water Addition System

The water addition system wets the hot sand, allowing for controlled, indirect cooling of the castings as they agitate. The water softens and aids in breaking down sand lumps.

Gas-Fired Burner

Optional burner attachments that supply supplementary heat for specialized thermal processing or drying.

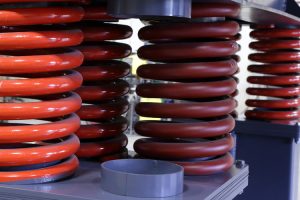

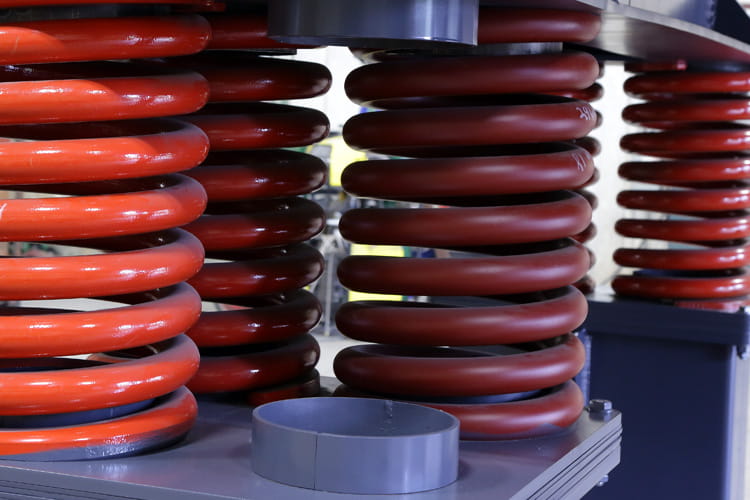

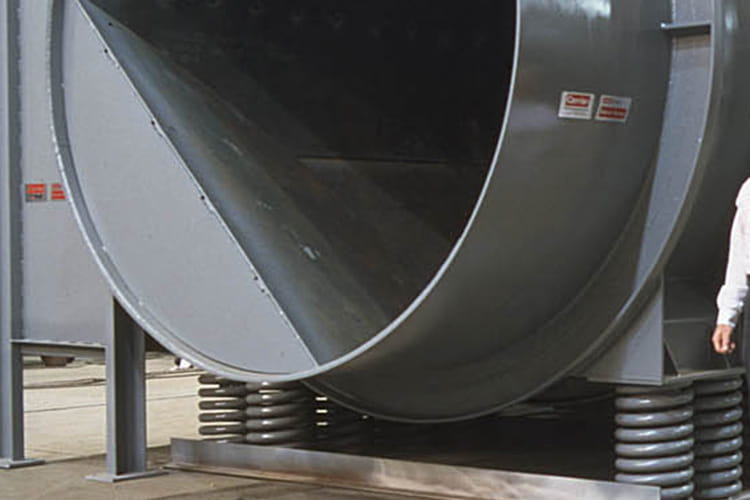

Soft-Isolation / Spring-Mounted Base

As with other Carrier vibratory equipment, isolation reduces vibration transmitted to building structure, which helps if your plant floor or building isn’t overbuilt for heavy vibration.

Materials of Construction

Material contact surfaces can be fabricated from carbon steel, stainless steel, titanium, Inconel® or a number of other alloys. Specialized coatings are available to reduce product adhesion.

Gentle or Aggressive Designs

Available in low or high vibration designs to process castings.

Custom Controls

Advanced, PLC-monitored process controls, Delta-Phase® Process Controller that allows the operator to accurately change the angle of vibration and speed of the machine.

Applications

Sand & Casting Separation

Separate metal castings from molding sand while significantly reducing casting damage and preparing the sand for immediate reuse.

Green Sand

Carrier’s Barrel Horse shakeout uses gentle vibratory attrition rather than harsh, direct impacts. Castings are submerged into the sand bed and “swim” to separate the sand. This continuous agitation safely breaks down sand lumps to a homogeneous grain size for reuse.

Casting Cleaning

Unlike traditional shakeouts that lift and violently drop castings, the Barrel Horse allows parts to “swim” in a continuous sand bed. The vibratory agitation cleans the part while eliminating casting damage.

Casting Cooling

Provides controlled retention and material movement to dissipate heat from castings during shakeout. Continuous tumbling exposes casting surfaces, promoting more uniform cooling before downstream handling and finishing.

Lump Breaking & Sand Reclamation

The gentle, tumbling vibration breaks down sand lumps, turning them into a homogeneous mix that is ready to be returned to the system for recycling.

Sluggish Material

Positive mechanical agitation maintains movement of sluggish or difficult-to-handle materials through the shakeout. Controlled tumbling reduces bridging and material buildup while supporting consistent discharge and processing rates.

Downloads

Foundry Equipment Solutions Brochure

Carrier Capabilities Brochure

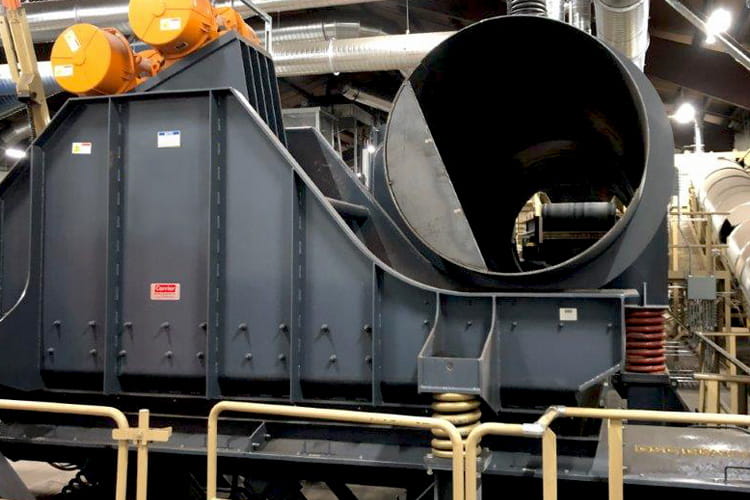

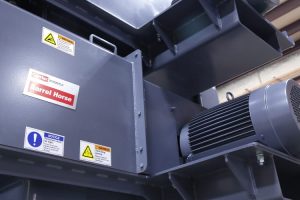

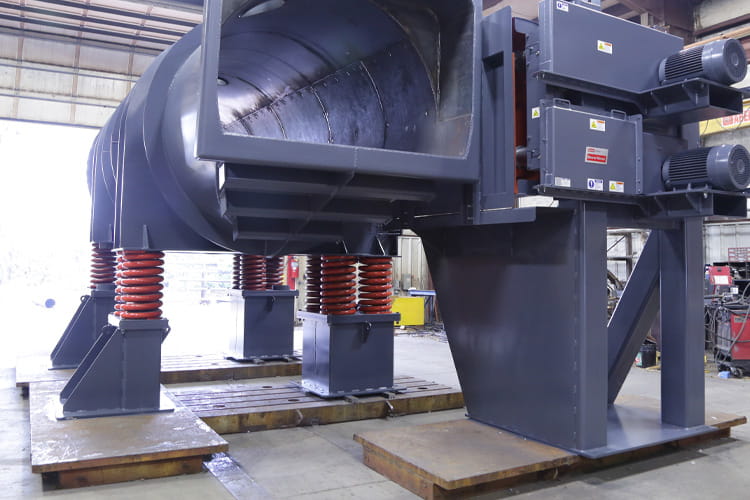

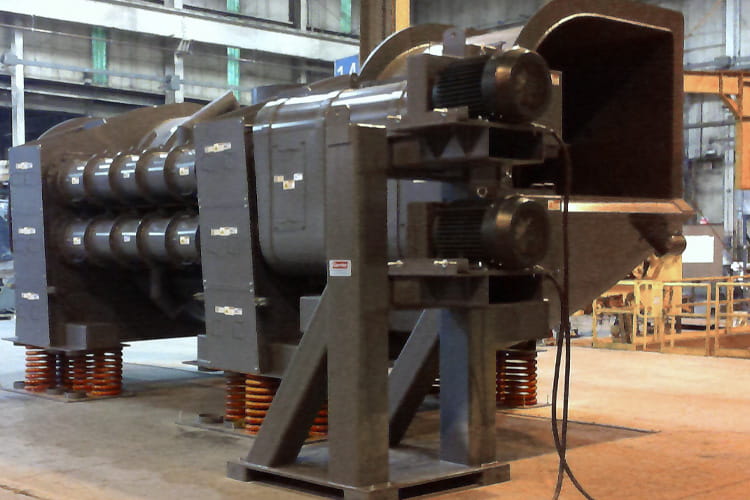

Galerie

Barrel Horse Shakeout FAQs

What is a Barrel Horse Shakeout designed for?

The Barrel Horse is built for efficient, high-energy sand removal on medium to large castings using a rotating vibrating barrel and vibratory action to break down molds quickly.

What types of castings is it best suited for?

It handles tough, heavy, and complex castings that require aggressive sand removal—common in iron, steel, and large foundry applications.

Does tumbling damage castings?

The Barrel Horse is engineered to balance energy and protection, using controlled rotation and precise vibration to remove sand efficiently while minimizing impact on castings.

What are the throughput capabilities?

Throughput depends on barrel size and rotational speed, but the system is designed for continuous, high-volume operation with consistent sand removal.

How does the system manage sand and fines?

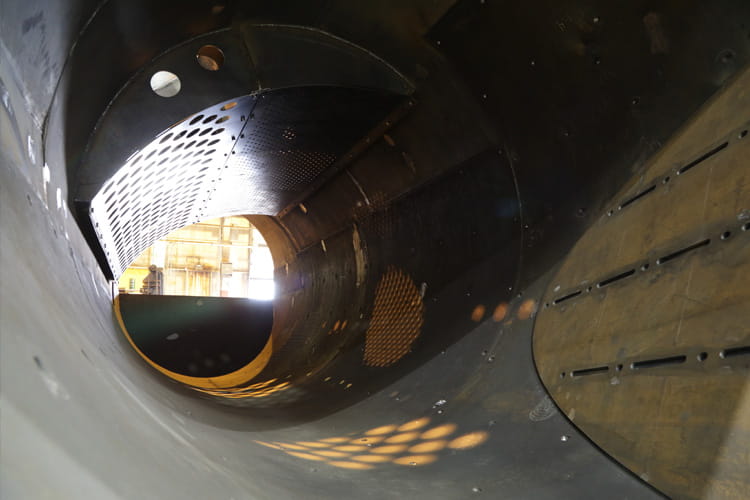

Sand drops through perforations in the barrel and can be collected or integrated with downstream sand-handling systems. Fines are reduced by connecting a dust collection system to ports fitted into the top of the barrel.
