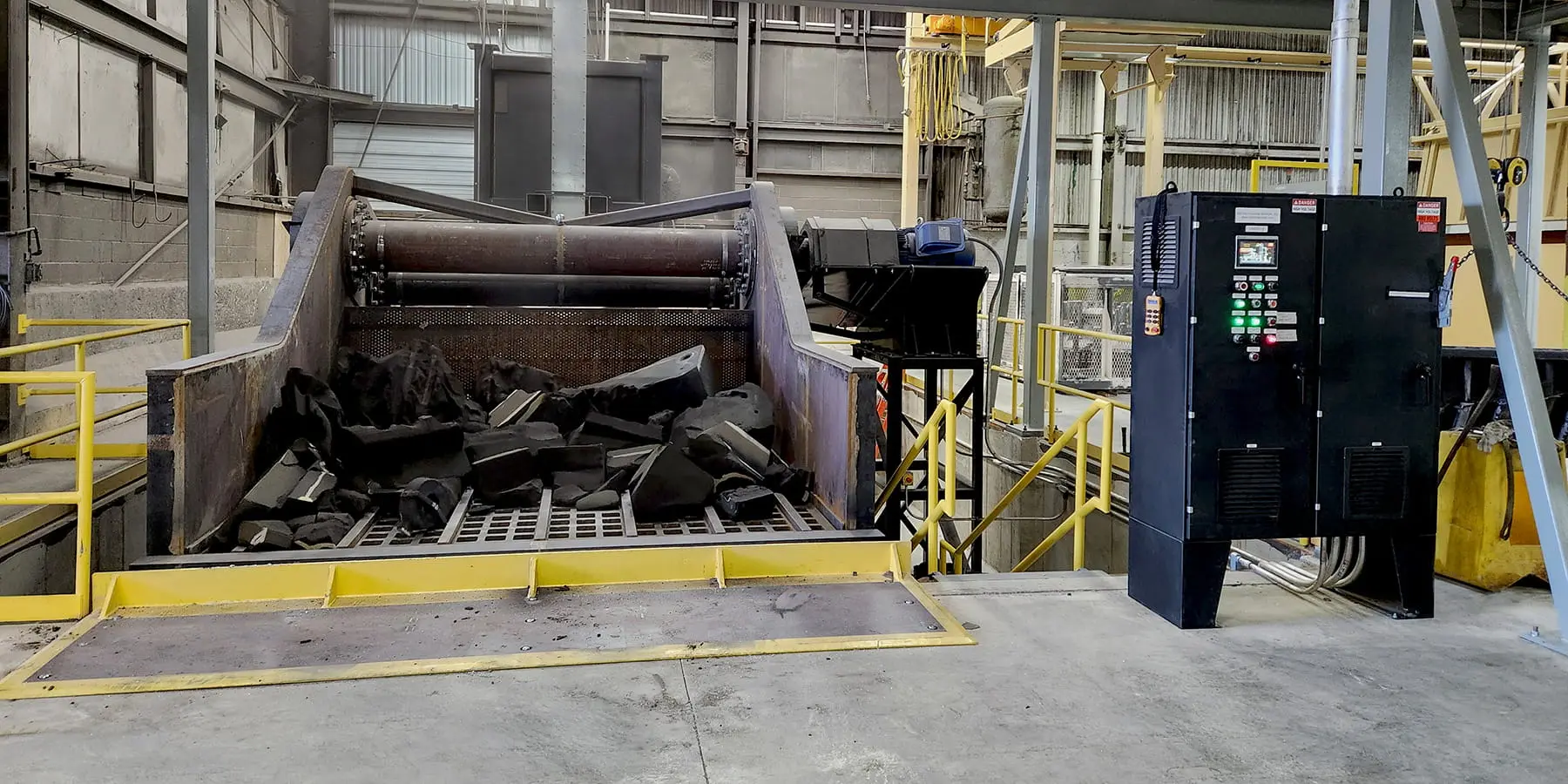

Shakeout Deck Attrition Mill

Shakeout and attrition systems that increase foundry throughput while cutting labor, scrap, and maintenance costs.

Handle more castings in the same footprint

Gently remove sand while protecting delicate castings

Boost line efficiency with smooth, controlled operation

Reduce operating costs with reliable performance

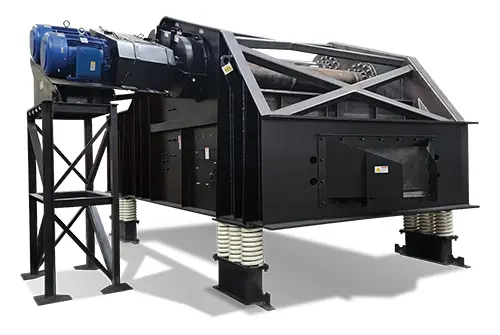

SDAM-Shakeout Large industrial screening machine with a blue motor on the left and a sturdy steel frame on adjustable supports

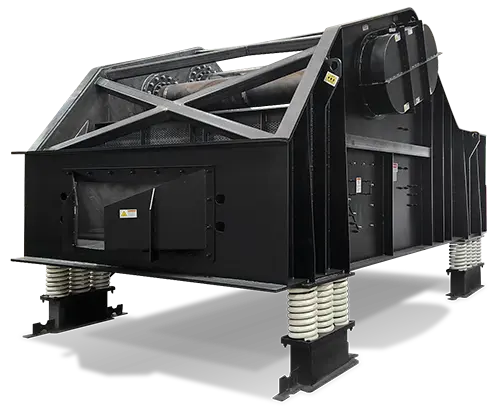

Shakeouts for No Bake Sand, Flasked and Flaskless Applications

Carrier Vibrating Equipment Shakeout Deck / Attrition Mill Combination Units shake out castings and reduce no-bake sand back to grain size. A vibratory motion separates sand from castings, then processes the sand through a series of three perforated decks and screens, reducing lumps to grain size. This reduces shakeout time and labor for foundry operations running continuous casting cycles. Designs are available for no-bake sand in both flasked and flaskless configurations.

Request a Quote

Features & Benefits

Screen/deck system reduces sand lumps to grain size through a primary shakeout deck, secondary attrition screen, and discharge mesh screen.

Engineered to handle up to 12.5-ton loads for demanding foundry applications.

Heavy-duty components deliver long operational life and low maintenance.

Drive system is designed to handle upset conditions.

Standard deck sizes range from 3’x3′ to 10’6″x10’6″, with custom sizes available.

Multiple design configurations available, including low headroom.

Equipment Options & Accessories

No-Bake, Flask & Flaskless

Carrier shakeouts are available in a variety of design configurations depending on the foundry application.

Low-Headroom Designs

Space-saving design for facilities with space constraints.

Large Capacity Load Handling

Ability to handle up to 100‑ton loads: useful for heavy castings or large mold flasks.

Custom Decks & Sizes

Decks for large flask sizes or heavy molds, “V” shaped decks for engine blocks, grizzly designs for maximum large-lump scalping and separation, and back-drafted slots to prevent damage to fragile castings.

Heavy-Duty Wear Liners

Heavy-duty wear liners and specialized sand pans are available, including moisture-resistant options for handling wet sand.

Drive Systems

Available in multiple designs, including energy-efficient natural frequency, sub-resonant two-mass drives, and brute force direct drives.

Gentle or Aggressive Designs

Available in low or high vibration designs to process the widest range of materials.

Custom Controls

Simple starter panels or customized PLC-based controllers complete with remote startup and engineering services. Controls are tailored to specific casting requirements, utilizing advanced, pre-programmed sequences to control vibration and retention time.

Applications

Sand & Casting Separation

Uses controlled vibratory energy to separate molding sand from castings after pouring. Engineered stroke and frequency promote efficient sand removal while minimizing casting damage and unnecessary handling.

Lump Breaking

Breaks no-bake molds down into small lumps to prepare for downstream attrition to be followed by mechanical and/or thermal reclamation.

No-Bake Sand

Separate solid, chemically bonded sand molds from metal castings while breaking the molds down to smaller lumps.

Specialty Sands

Accommodates common molding aggregates like silica sand as well as specialty sands used for complex metal castings.

Flasked Molds

No-bake and green sand shakeouts safely separate hardened sand from metal castings and empty the sand from the foundry flask. The heavy-duty vibratory action knocks the sand out without degrading or damaging the fragile metal casting.

Flaskless Molds

Efficiently separate rigid sand molds from metal castings and break down sand lumps without damaging the finished part. For flaskless molding, this process is critical for safely stripping away chemically bonded sand and preparing it for downstream reclamation.

Chemically Bonded Systems

Breaks down chemically bonded molds and separates sand from castings using engineered vibratory energy. Effective lump reduction prepares bonded sand for subsequent attrition, reclamation, and reuse. Primarily designed for No-Bake systems (e.g., Phenolic Urethane No-Bake (PUNB), furan, or ester-cured).

Brochures

Foundry Equipment Solutions Brochure

Carrier Capabilities Brochure

Gallery

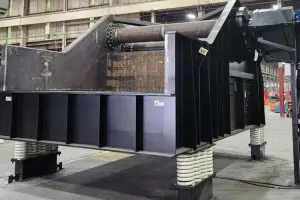

Large industrial machine with a rotating roller, metal housing, and coil-spring supports on a factory floor.

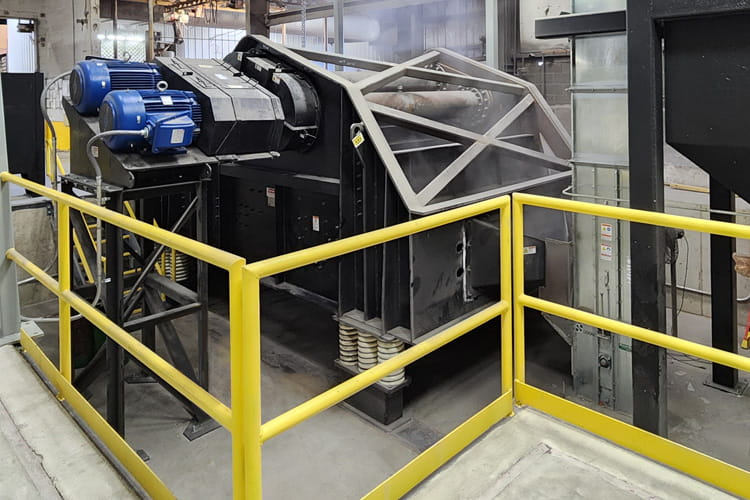

Industrial metal shredder with blue motors and a steel frame inside a factory, surrounded by yellow safety railing.

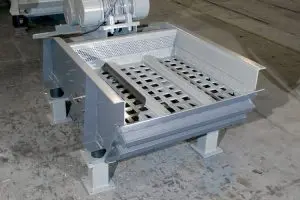

Industrial vibrating screen with perforated metal tray on a steel frame and motor above, used to sort materials on a factory floor.

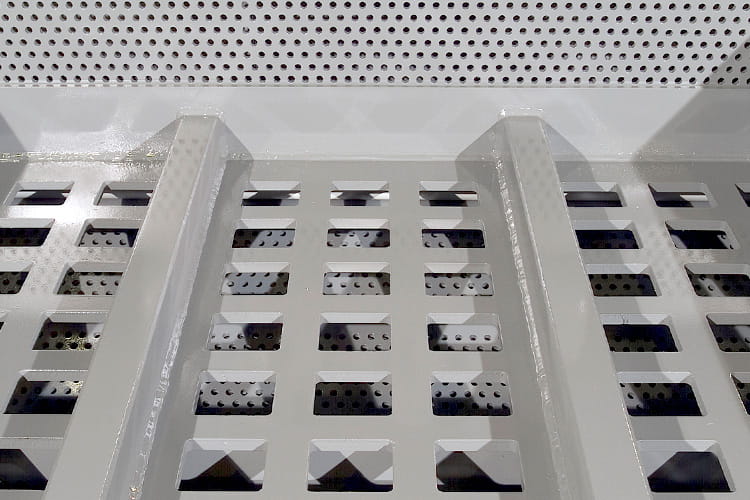

Industrial metal perforated floor/grating with square holes and two supporting beams, viewed from above, in a workshop setting.

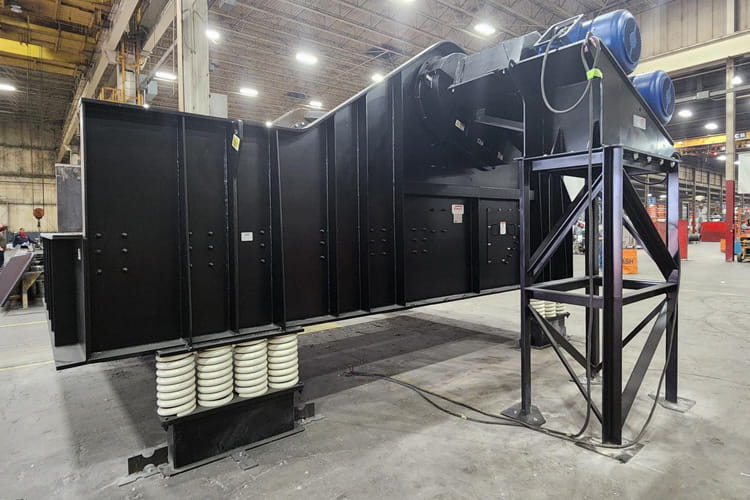

Industrial factory setting with a long black conveyor system supported by spiral-spring legs, blue motors on top, and cables on the floor.

SDAM Shakeouts FAQs

How does Carrier’s No Bake Shakeout work?

There is a series of three decks/screens sand must pass through before being discharged. Primary deck is where the castings are shaken out, picked off, and then the remaining mold sand is reduced to ~4″ maximum lumps. The secondary screen is below/ahead and forms an attrition chamber to break sand back down to grain size with holes of ~1/2″ diameter. Finally, a mesh screen at the discharge removes any oversize particles or agglomerated grains prior to being discharged for downstream processing.

What types of castings can it handle?

Any type of casting in a no bake mold can be processed on a SDAM, whether steel, iron, aluminum, or other non-ferrous metal.

Will it work with chills?

Yes. Large chills can be picked manually off the primary deck. Smaller chills that pass through the primary deck will be retained ahead of the secondary screen. There are easily removable access doors on both sides of the unit to allow small chills to be emptied from the SDAM.

Is the system compatible with hot molds?

Yes – Hot molds are no problem for the SDAM as it is all steel and does not include any rubber components that could melt. Care should be taken to make sure that any downstream equipment such as bucket elevators or belt conveyors are rated for the sand temperature processed.

What maintenance is required?

Periodic greasing/oiling of the motors/drives and regular spring inspection/replacement. Decks and screens should also be inspected/replaced on a regular basis as worn out by sand abrasion. We offer decks in mild steel, AR400 abrasion resistant steel, manganese, or other specialty metals as desired.
