No Bake & Green Sand Shakeouts

Increase foundry profitability by reducing labor costs, scrap rate, and machine maintenance with Carrier Vibrating Equipment.

Handle more castings in the same footprint

Gently remove sand while protecting delicate castings

Boost line efficiency with smooth, controlled operation

Reduce operating costs with reliable performance

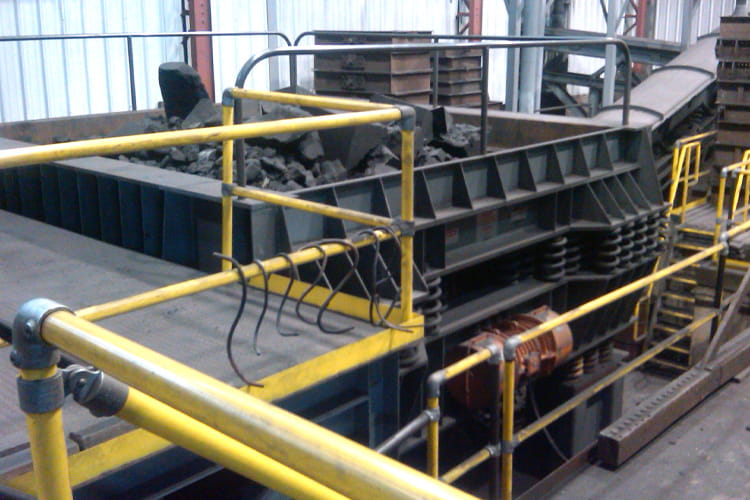

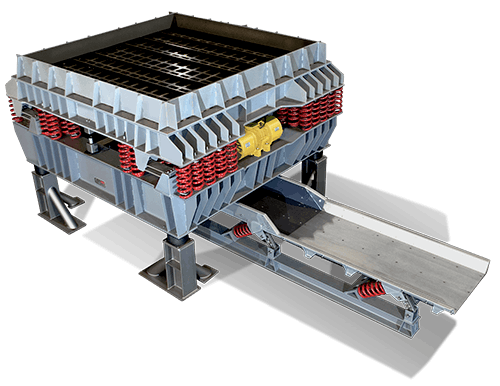

Shakeouts for No Bake, Green Sand, Flasked and Flaskless Applications

Carrier non-conveying shakeouts efficiently shake out castings and reduce sand lump size. These shakeout machines utilize a vibratory motion to separate the sand from the castings, allowing sand to pass through a perforated deck. The large, non-conveying shakeout significantly reduces your foundry’s shakeout time and labor. Designs available for no-bake and green sand in both flasked and flaskless configurations.

Request a Quote

Features & Benefits

Heavy-duty equipment designed to handle up to 100-ton loads.

Heavy-duty components for long operational life and low maintenance.

Large workable deck area of up to 14 feet by 14 feet in a single unit for maximum throughput.

Unique and specifically engineered deck allows sand to pass through the unit.

Système d'entraînement capable de faire face à des conditions perturbées.

Plusieurs configurations sont possibles, y compris pour des hauteurs de chute réduites.

Isolated design available for low dynamic reactions.

Equipment Options & Accessories

No-Bake, Green Sand, Flask & Flaskless

Carrier shakeouts are available in a variety of design configurations depending on the foundry application.

Low-Headroom Designs

Space-saving design for facilities with space constraints.

Large Capacity Load Handling

Ability to handle up to 100‑ton loads: useful for heavy castings or large mold flasks.

Custom Decks & Sizes

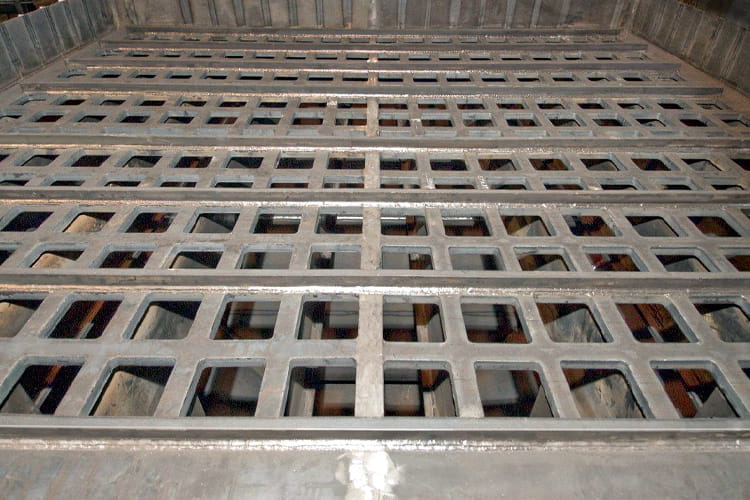

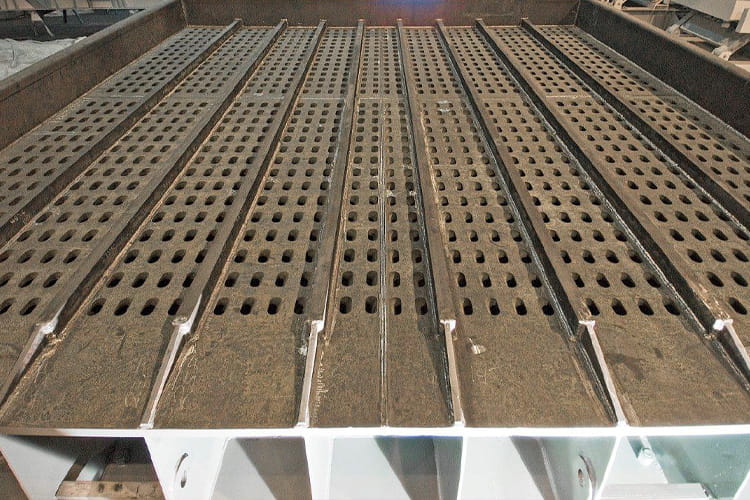

Decks for large flask sizes or heavy molds, “V” shaped decks for engine blocks, grizzly designs for maximum large-lump scalping and separation, and back-drafted slots to prevent damage to fragile castings.

Heavy-Duty Wear Liners

Heavy-duty wear liners and specialized sand pans are available, including moisture-resistant options for handling wet sand.

Drive Systems

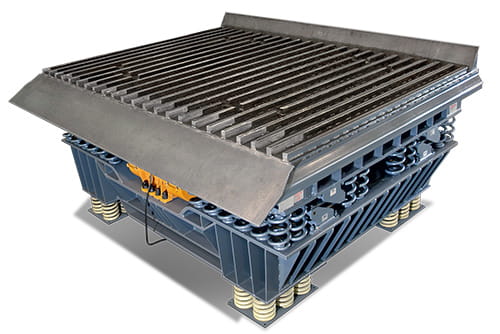

Available in multiple designs, including energy-efficient natural frequency, sub-resonant two-mass drives, and brute force direct drives.

Isolated Design

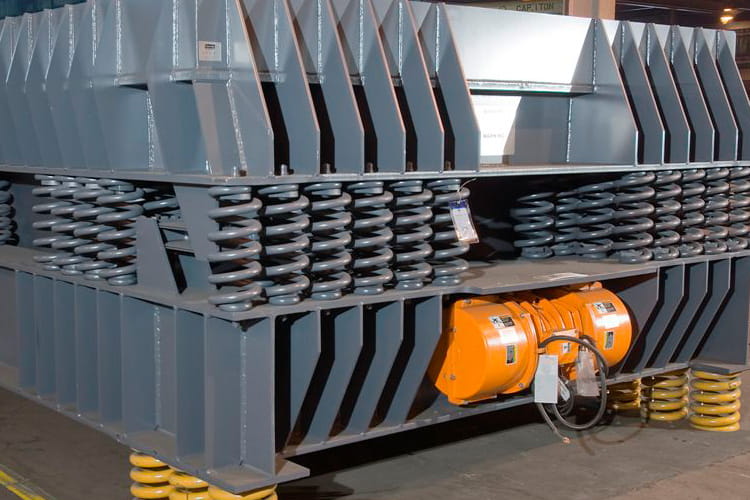

Variety of isolation configurations available to reduce dynamic reactions and minimize the force transferred to the surrounding foundation.

Gentle or Aggressive Designs

Disponibles en version basse ou haute vibration pour traiter la plus large gamme de matériaux.

Custom Controls

Simple starter panels or customized PLC-based controllers complete with remote startup and engineering services. Controls are tailored to specific casting requirements, utilizing advanced, pre-programmed sequences to control vibration and retention time.

Applications

Sand & Casting Separation

Uses controlled vibratory energy to separate molding sand from castings after pouring. Engineered stroke and frequency promote efficient sand removal while minimizing casting damage and unnecessary handling.

Lump Breaking

Breaks no-bake molds down into small lumps to prepare for downstream attrition to be followed by mechanical and/or thermal reclamation.

No-Bake Sand

Separate solid, chemically bonded sand molds from metal castings while breaking the molds down to smaller lumps.

Green Sand

Controlled, high-frequency vibratory motion breaks down mold lumps, gently stripping the reusable sand away from castings and dropping it through a perforated screen.

Specialty Sands

Accommodates common molding aggregates like silica sand as well as specialty sands used for complex metal castings.

Flasked Molds

No-bake and green sand shakeouts safely separate hardened sand from metal castings and empty the sand from the foundry flask. The heavy-duty vibratory action knocks the sand out without degrading or damaging the fragile metal casting.

Flaskless Molds

Efficiently separate rigid sand molds from metal castings and break down sand lumps without damaging the finished part. For flaskless molding, this process is critical for safely stripping away chemically bonded sand and preparing it for downstream reclamation.

Chemically Bonded Systems

Breaks down chemically bonded molds and separates sand from castings using engineered vibratory energy. Effective lump reduction prepares bonded sand for subsequent attrition, reclamation, and reuse. Primarily designed for No-Bake systems (e.g., Phenolic Urethane No-Bake (PUNB), furan, or ester-cured).

Brochures

Foundry Equipment Solutions Brochure

Carrier Capabilities Brochure

Galerie

No-Bake & Green Sand Shakeouts FAQs

How does Carrier’s No Bake Shakeout work?

The unit uses controlled vibration and motion to break apart the no-bake mold, allowing sand to fall away from the casting while minimizing impact and casting damage.

What types of castings can it handle?

No-Bake Shakeouts can handle small, medium, and large castings made from iron, steel, or other metals, including complex geometries and thin-walled parts.

Can it reduce sand carryover?

Yes. Optimized motion and retention time allow more complete sand removal, reducing contamination to downstream processes.

Is the system compatible with hot molds?

Yes. Carrier designs shakeouts to handle molds directly from the furnace line, with heat-resistant components as needed.

What maintenance is required?

Routine inspection of drive components, springs, deck liners, and wear surfaces. Carrier units are designed for low maintenance and long service life.
