Can vibrating fluid bed dryers handle varying feed moisture?

Yes. These systems can accommodate variable moisture content by adjusting airflow, controlling temperature, and managing residence time.

Secadores vibratorios de lecho fluido

Does consistency, efficiency, and reliability define your production line?

Achieve precise moisture control every run

Lower energy consumption with smarter airflow

Run more product through the same footprint

Reduce downtime and maintenance costs

Fluidized Bed Dryers

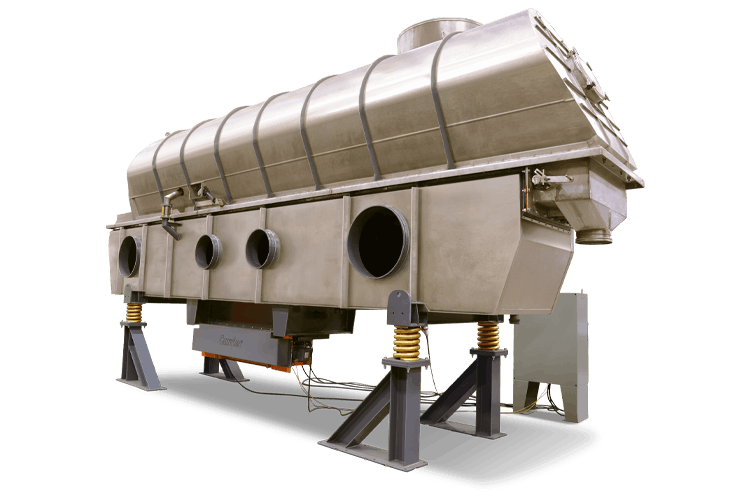

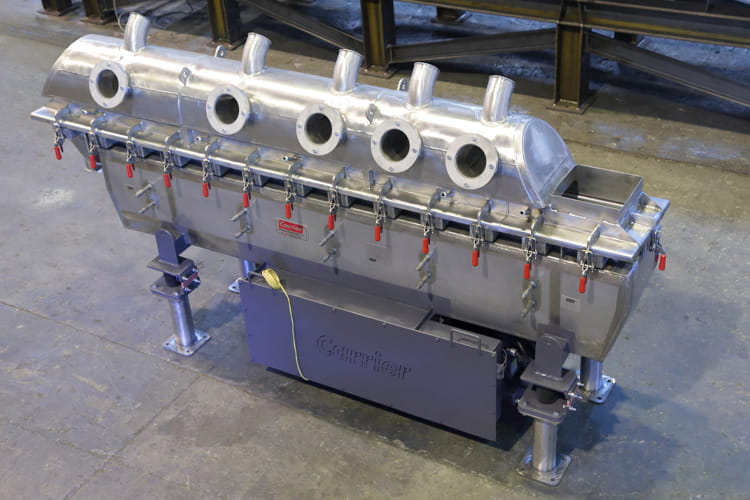

Carrier’s vibrating fluid bed dryers are designed to dry and/or cool a variety of products at a wide range of feed rates. Like conventional, or static fluid bed dryers, vibrating fluid bed dryers function by passing a process gas directly through a bed of solids via a perforated plate or another type of fluidizing media. Vibration aids in the fluidization and movement of difficult-to-process materials while preventing hot spots, burnt sides or areas left wet, while zoning allows multiple functions to be performed in a single piece of equipment for maximum material processing efficiency.

Request a Quote

Features & Benefits

Lower fluidizing velocities are required, making the fluid bed dryer system more energy efficient than other drying systems.

Zoning allows multiple functions to be performed in a single piece of equipment to optimize material processing efficiency.

Plug flow delivers consistent first-in, first-out material output ensuring uniform processing, improved product quality, and predictable, repeatable performance.

High temperature designs provide minimal footprint and maximum efficiency for reliable performance while optimizing energy use and reducing operational costs.

Simple design provides easy cleaning, maintenance, and long-lasting reliability – reducing downtime, streamlining upkeep, and ensuring consistent performance over the life of your equipment.

Equipment Options & Accessories

Patented Delta-Phase® Drive

Make on-line changes to the angle of vibration for precise control of retention time, maximum fluidization, and processing of multiple products.

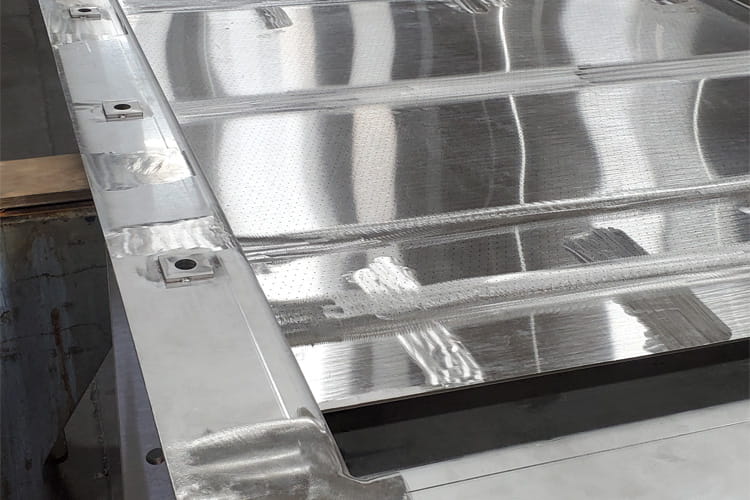

Fluidized Deck Designs

Over 100 deck designs ensures the proper fluidizing deck for precise airflow and consistently distributed heat.

Iso-Max Dynamic Reaction Reducer

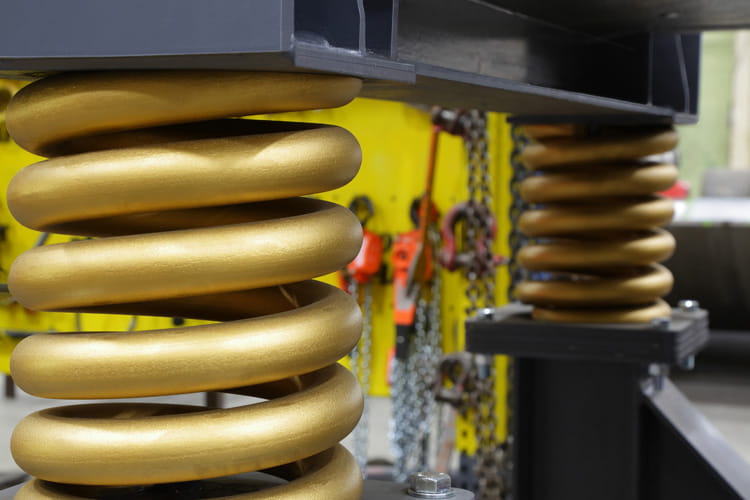

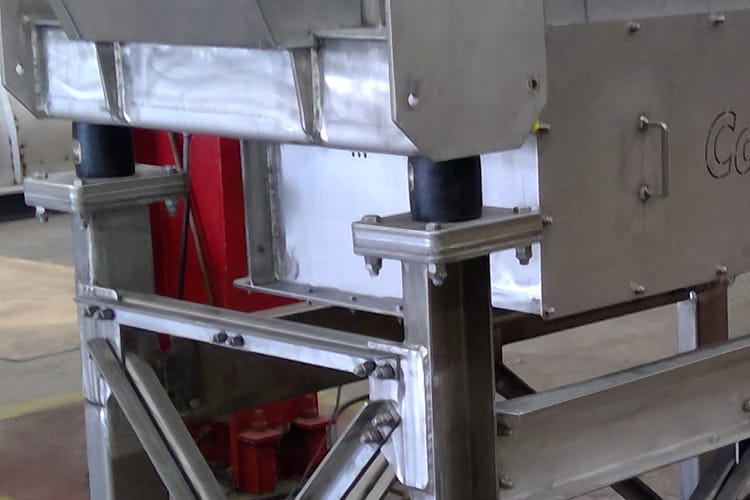

Significantly reduce the low dynamic reaction transmitted through the fluid bed isolation springs by up to 96%.

Sanitary Designs

Sanitary, U.S.D.A. (3A) approved vibrating fluid bed dryer construction for food processing.

Materials of Construction

Material contact surfaces can be fabricated from carbon steel, stainless steel, titanium,
Inconel® or a number of other alloys. Specialized coatings are available to reduce product adhesion.

Access Manways & Doors

Access the plenum and deck with a variety of customized manways and doors.

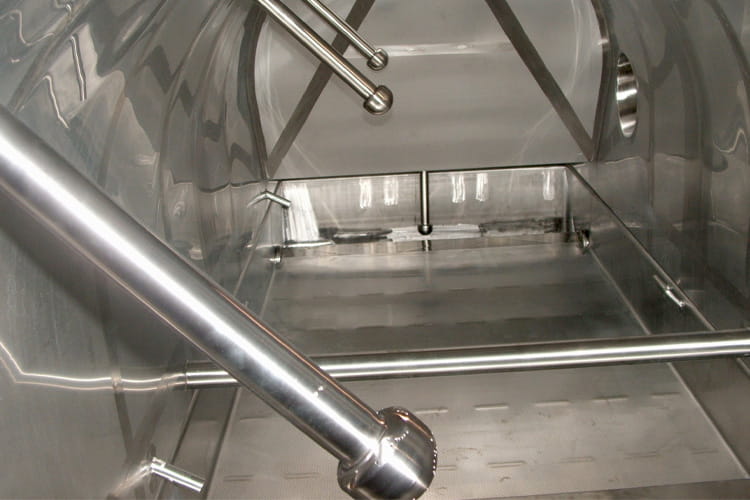

Clean-In-Place

Sistemas de limpieza in situ (CIP) y de extinción de incendios disponibles como parte del secador de lecho fluido vibrante, cuando sea necesario.

Recirculated Gas & Closed-Loop Systems

Hay disponibles sistemas de recirculación de gases y de circuito cerrado para mejorar la eficacia o la recuperación de disolventes.

Gentle or Aggressive Designs

Disponibles en diseños de baja o alta vibración para procesar la más amplia gama de materiales.

Safety Features

All dryer system components can be designed with fire and explosion prevention, detection, and suppression systems.

Custom Controls

Minimize field commissioning work with simple starter panels or customized PLC-based controllers complete with remote startup and engineering services.

Aplicaciones

Animal Feed

Animal feed applications involve the handling and processing of grains, pellets, and powdered ingredients used in livestock, poultry, aquaculture, and pet nutrition.

Bauxita/arcilla

Bauxite and clay applications involve the handling and processing of raw materials used in aluminum production, ceramics, refractories, and specialty industrial products.

Biomasa y madera

Biomass and wood applications involve the handling and processing of organic materials such as wood chips, sawdust, hogged wood, and agricultural residues used in energy production, particleboard, pulp and paper, and other industrial processes.

Catalizadores

Controlled mechanical vibration combined with forced airflow lifts and separates the particles, ensuring even drying and thermal efficiency without damaging the catalyst’s structure.

Cement & SCMs

Carrier’s vibrating fluid bed dryers process cement and SCM materials by blowing air up through a perforated bed to suspend the solids in a fluidized state while applying gentle mechanical vibration.

Compuestos químicos

For chemical compounds, rapidly remove moisture, deliver uniform thermal processing, and prevent clumping or hot spots without degrading sensitive materials.

Carbón

Coal applications involve the handling and processing of raw or processed coal used in power generation, steel production, and industrial heating.

Fertilizantes

Fertilizer applications involve the handling and processing of granular, powdered, or pelletized nutrients used in agriculture and horticulture.

Alimentación, productos lácteos y mascotas

Food, dairy, and pet food applications involve the handling and processing of powders, granules, and other bulk ingredients used in human and animal nutrition.

Frac Sand, Sand & Gravel

Frac sand, sand, and gravel applications involve the handling and processing of naturally occurring or manufactured granular materials used in hydraulic fracturing, construction, glass manufacturing, and other industrial applications.

Lithium-Ion Minerals

Our vibrating fluid bed dryers process lithium-ion materials by suspending fine, valuable powders (like lithium carbonate, hydroxide, and black mass) on a cushion of air and mechanical vibration. This uniformly removes moisture and controls temperature while preventing sticking, clumping, and particle degradation for battery-grade production.

Pellets de plástico

Plastic pellet applications involve the handling and processing of polymer granules used in the production of molded, extruded, or fabricated plastic products.

Productos farmacéuticos

Pharmaceutical applications involve the processing and handling of powders, granules, and active ingredients used in the manufacture of medications, supplements, and other healthcare products.

Minerales granulados

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Goma y caucho

Rubber and crumb rubber applications involve the handling and processing of natural or synthetic rubber, including recycled crumb rubber, used in tires, mats, molded products, and industrial components.

Residuos, vidrio reciclado

Refuse and recycled glass applications involve the handling and processing of post-consumer or industrial waste materials, including crushed glass, cullet, and mixed refuse, for recycling into new products or for industrial reuse.

Featured Resources

Vibratory fluid bed dryers provide a number of advantages for drying solids. Experiences in developing vibratory fluid bed dryers for new production lines or in helping customers redesign drying lines have shown that vibratory fluid bed dryers efficiently meet heat transfer requirements. Furthermore, these dryers deliver simple, one-step processing resulting in high-quality product, high operating efficiency, and low maintenance costs when compared to other drying technologies.

Download White Paper

Folletos

Vibrating Fluid Bed Brochure

Carrier Capabilities Brochure

CPEG Capabilities Brochure

Galería

Vibrating Fluid Bed Dryers FAQs

What is a vibrating fluid bed dryer?

A vibrating fluid bed dryer uses vibration and controlled airflow to suspend and move particles across a perforated deck while heated air removes moisture. This creates efficient heat transfer and uniform drying.

What materials are best suited for vibrating fluid bed drying?

Vibrating fluid bed dryers are ideal for free-flowing granular materials such as sand, salt, fertilizer, chemicals, food ingredients, and minerals.

Why use vibration in a fluid bed dryer?

Vibration improves material movement and prevents channeling or clumping. This ensures more uniform contact between the particles and drying air.

What are the advantages of vibrating fluid bed dryers?

Benefits include uniform drying, high thermal efficiency, gentle material handling, reduced product degradation, and consistent moisture control.

How is a vibrating fluid bed different from a conventional fluid bed?

Vibration helps move material through the bed, improves fluidization of hard-to-flow or sticky products, and allows lower airflow requirements.

Why add vibration to the fluidization process?

Vibration enhances product movement, prevents channeling, improves heat/mass transfer, and supports uniform fluidization at lower velocities.

What kind of moisture removal is possible?

Moisture reduction depends on process conditions, but vibrating beds provide highly repeatable, efficient drying due to consistent fluidization.

Are different deck or perforation styles available?

Yes. Deck perforations, bed depths, and airflow patterns can be tailored to match product size and fluidization needs.
