Descargadores vibratorios para contenedores

Enhance your operation’s flow of dry bulk materials from hoppers and storage bins.

Promotes plug flow from hoppers and maximizes storage capacity

Precise energy transmission for positive, continuous flow of material from storage bins on a first-in, first-out basis

Configurations for vibratory bin dischargers, live bottom hoppers, live bins, and storage pile dischargers

Descargadores vibratorios para contenedores

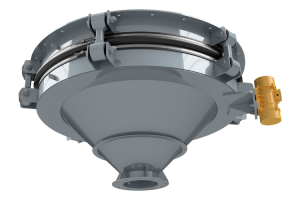

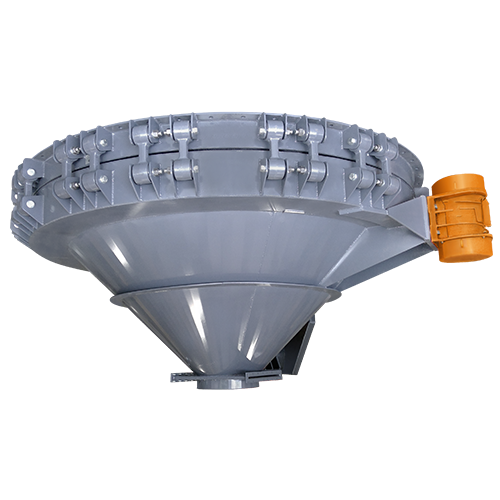

Carrier Vibrating Bin Dischargers provide an efficient means for discharging dry materials from storage bins on a first-in, first-out basis with positive, continuous flow. The primary function of a vibrating bin discharger is to cause material to flow. It is not a metering device, though often a feeder can accomplish metering. Carrier’s vibrating bin dischargers are proven reliable, with a quiet design and durable construction that is ready for any application.

Carrier an assist in the selection of feeding equipment below the discharge outlet. Our vibrating feeders are specifically designed for use with bin dischargers.

Request a Quote

Features & Benefits

Standard vibrating bin dischargers range from 2 foot through 15 foot diameter depending on your requirements.

Forged steel isolation hanger arms with rubber bushings provide support from above.

Anillo adaptador de montaje soldado al contenedor o atornillado a una brida.

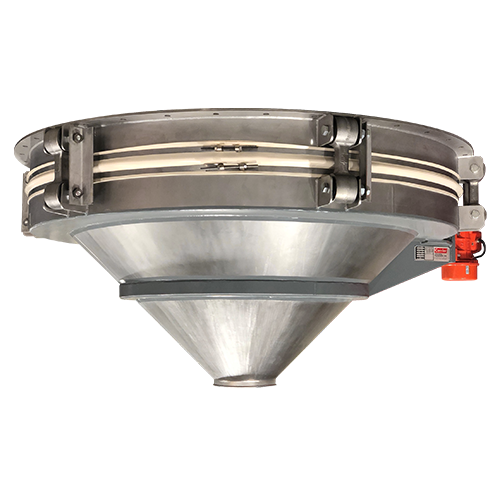

Calcetín de entrada de neopreno moldeado "Super Seal".

Internal 20 degree pressure cone to transmit the precise energy necessary for material flow.

45 degree outer cone constructed of carbon steel for long-lasting durability.

Cycle timer allows a multitude of cycle ranges from a few seconds to hours.

Simple, quiet belt drive with standard foot-mounted motor for easy operation.

Los descargadores de contenedores se envían completamente montados y listos para instalar.

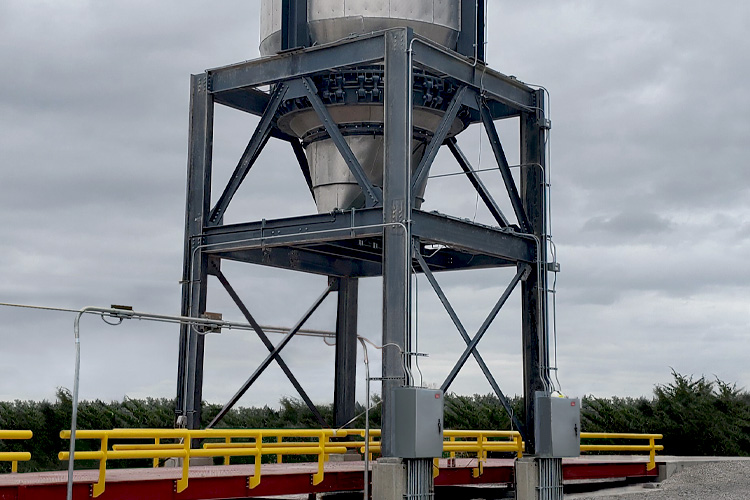

Design allows for discharging directly into a truck or rail car.

Equipment Options & Accessories

Pressure or Vacuum Units

Custom designs for pressure or vacuum service are available. Heavy-duty, reinforced socks are available for extreme pressure or vacuum situations.

Adapter Ring

The mounting adapter ring can be welded directly to the bin or bolted to a flange on the bin or hopper. The mating flange can also be provided.

Bolted Expansion Joints

A bolted expansion joint with bolting bars can be provided to prevent dusting of fine powders.

Coatings

Specialized Teflon® coatings are available to reduce product adhesion.

Motor Classifications

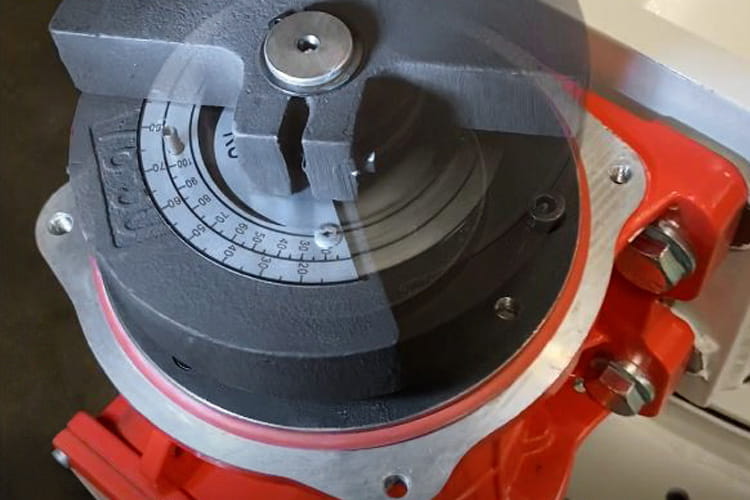

Totally enclosed vibratory motors to meet various area classifications.

Slide Gates

Manually actuated slide gates or hammer gates for quick access maintenance are available upon request.

Discharge Outlets

Eccentric outlets, multiple outlets, and custom sizes available.

Inlet Seals

Various seals and material combinations to fit your specific application needs.

Aplicaciones

Aluminum Chips

Promotes reliable discharge of lightweight, irregular aluminum chips from bins and hoppers. Controlled vibration reduces bridging and interlocking while delivering consistent material flow to downstream recovery equipment.

Bauxite

Provides positive discharge of dense, abrasive bauxite from storage vessels. Engineered vibration breaks material bridging and promotes mass flow while maintaining controlled feed to downstream processing equipment.

Carbon Black

Maintains consistent discharge of fine, low-density carbon black that can bridge or compact in storage. Controlled vibration mobilizes material while supporting enclosed, dust-conscious handling.

Coal & Lignite

Promotes reliable discharge of coal and lignite despite variable particle size, moisture, and flow characteristics. Vibratory action reduces bridging and ratholing while maintaining consistent downstream feed.

Detergents

Provides controlled discharge of powdered and granular detergents from storage bins. Gentle vibration reduces compaction and bridging while maintaining consistent material flow and minimizing unnecessary particle degradation.

Diatomaceous Earth

Mobilizes lightweight, fine diatomaceous earth that can compact or bridge during storage. Controlled vibration promotes uniform discharge while supporting enclosed handling and consistent downstream feeding.

Dried Sewage Pellets

Provides consistent discharge of dried biosolid pellets from storage vessels. Vibratory action prevents bridging and stagnant material zones while maintaining controlled flow to conveying or downstream processing equipment.

Filter Cake

Promotes positive discharge of cohesive filter cake that can resist gravity flow. Engineered vibratory forces reduce material adhesion and bridging while delivering consistent feed to downstream processing equipment.

Fly Ash

Provides reliable discharge of fine fly ash from bins and silos by reducing compaction, bridging, and ratholing. Controlled vibration maintains uniform material flow to downstream handling systems.

Foundry Sand

Maintains consistent discharge of dense, abrasive foundry sand from storage bins. Rugged construction and controlled vibration prevent bridging while supplying reclamation, molding, or conveying equipment.

Granulated/Powdered Sugar

Promotes uniform discharge of granulated and powdered sugar while reducing bridging and compaction. Controlled vibratory motion supports consistent feeding and sanitary bulk-material handling.

Hogged Wood Waste

Handles irregular, interlocking hogged wood that can bridge above conventional outlets. Vibratory action mobilizes the material bed and provides consistent discharge to conveying or biomass-processing systems.

Hydrated Lime

Promotes reliable flow of fine, cohesive hydrated lime from storage vessels. Controlled vibration reduces arching, ratholing, and compaction while maintaining consistent downstream feed rates.

Kaolin Clay

Provides positive discharge of fine kaolin clay that can compact and resist gravity flow. Engineered vibration breaks bridging and promotes consistent material withdrawal from storage vessels.

Oat Flour

Gently mobilizes fine oat flour to reduce bridging and stagnant material zones in storage bins. Controlled vibration supports consistent discharge for downstream conveying, batching, or processing.

Petroleum Coke

Provides reliable discharge of abrasive petroleum coke across varying particle sizes. Heavy-duty vibratory action reduces bridging and maintains consistent feed to conveying, crushing, or processing equipment.

Plastic Powders

Promotes controlled discharge of lightweight plastic powders that can compact, bridge, or exhibit inconsistent flow. Engineered vibration maintains material movement while supporting consistent downstream feeding.

Soda Ash

Maintains reliable discharge of soda ash by reducing compaction, bridging, and ratholing within storage vessels. Controlled vibration provides consistent feed to conveying, batching, or processing systems.

Soybean Mill

Promotes uniform discharge of soybean meal and milled products that can compact or bridge during storage. Controlled vibration maintains consistent material flow to conveying, blending, or feed-processing equipment.

Tar Sand

Provides positive discharge of dense, abrasive tar sand from bins and hoppers. Engineered vibration helps overcome material adhesion and bridging while maintaining controlled downstream flow.

Tobacco

Gently discharges lightweight, irregular tobacco materials that can interlock or bridge in storage. Controlled vibration promotes consistent flow while minimizing excessive material degradation.

Wood Chips

Mobilizes irregular wood chips that can interlock and form stable bridges above bin outlets. Vibratory action promotes mass flow and consistent discharge to conveying or biomass-processing equipment.

Featured Resources

This white paper explores the hidden complexity of powder handling in industrial processing. It highlights how small variations in material properties, such as particle size, moisture, and compaction, can cause unpredictable behaviors. These issues often lead to significant unplanned downtime across industries.

Download White Paper

Folletos

Vibrating Bin Dischargers Brochure

Carrier Capabilties Brochure

CPEG Capabilties Brochure

Galería

Bin Dischargers FAQs

What does a vibrating bin discharger do?

Bin dischargers promote consistent material flow from storage bins, hoppers, and silos by preventing bridging, rat-holing, and material buildup.

How do vibrating bin dischargers improve material flow?

Controlled vibration helps loosen compacted material and maintains steady discharge rates into downstream processing equipment.

What materials can bin dischargers handle?

Carrier bin dischargers are used for powders, aggregates, minerals, biomass, chemicals, food ingredients, plastics, and other bulk solids with difficult flow characteristics.

Can bin dischargers be customized for different storage systems?

Yes. Carrier engineers design bin dischargers based on hopper geometry, material characteristics, throughput requirements, and plant layout constraints.

What problems do bin dischargers help solve?

Bin dischargers help eliminate bridging, surging, inconsistent feed rates, material hang-up, and flow interruptions that reduce processing efficiency.
