Enfriadores de lecho fluidizado vibrante

Is your cooling process delivering uniform product temperatures while protecting material quality?

Achieve consistent, even cooling across the entire bed for reliable downstream handling

Preserve product integrity with gentle vibration and controlled airflow

Improve efficiency with optimized heat transfer and reduced cooling time

Fluidized Bed Coolers

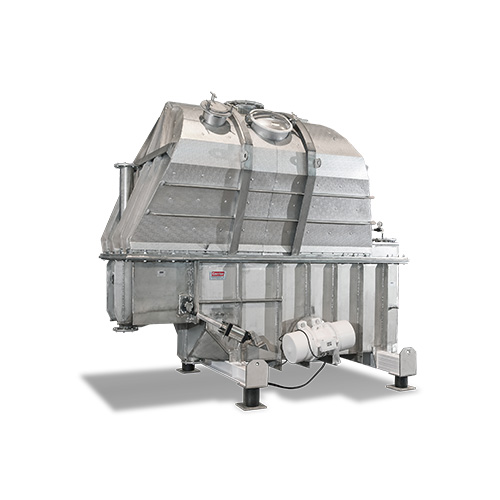

Carrier vibrating fluid bed coolers are designed to cool a variety of products at a wide variation of feed rates. Much like our Vibrating Dryers, Vibrating Fluid Bed Coolers function by passing process air directly through a bed of solids via a perforated plate or another type of fluidizing media. Vibration is added to aid in the fluidization of more difficult-to-fluidize materials. From once-through fluid bed process systems and partially recirculated systems to self-inerting fully recirculated systems, Carrier Vibrating Equipment designs complete customized solutions optimized for process cooling.

Request a Quote

Features & Benefits

El accionamiento Delta-Phase® patentado permite a los operarios del proceso realizar cambios en línea en el ángulo de vibración para controlar con precisión el tiempo de retención y cumplir las especificaciones exactas de refrigeración.

El material se mezcla continuamente mientras se enfría para obtener un producto homogéneo sin puntos calientes.

El diseño de baja velocidad de fluidización con menores requisitos de potencia hace que el sistema de refrigeración de lecho fluido sea más eficiente térmicamente en comparación con otros equipos de refrigeración.

Fácil de limpiar y mantener con las boquillas de pulverización de limpieza in situ (CIP) opcionales.

Variedad de diseños de cubierta de fluidización personalizados para un flujo de aire preciso y una refrigeración constante.

Construcción sanitaria, aprobada por la U.S.D.A. (3A).

Equipment Options & Accessories

Patented Delta-Phase® Drive

Make on-line changes to the angle of vibration for precise control of retention time, maximum fluidization, and processing of multiple products.

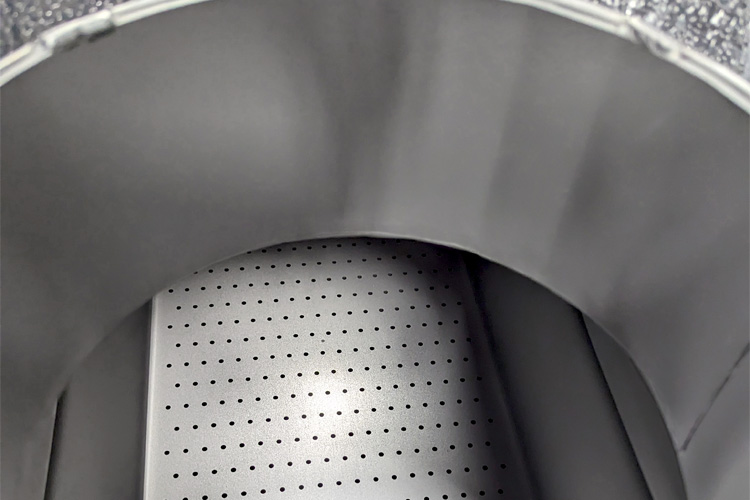

Fluidized Deck Designs

Over 100 deck designs ensures the proper fluidizing deck for precise airflow and consistently distributed heat.

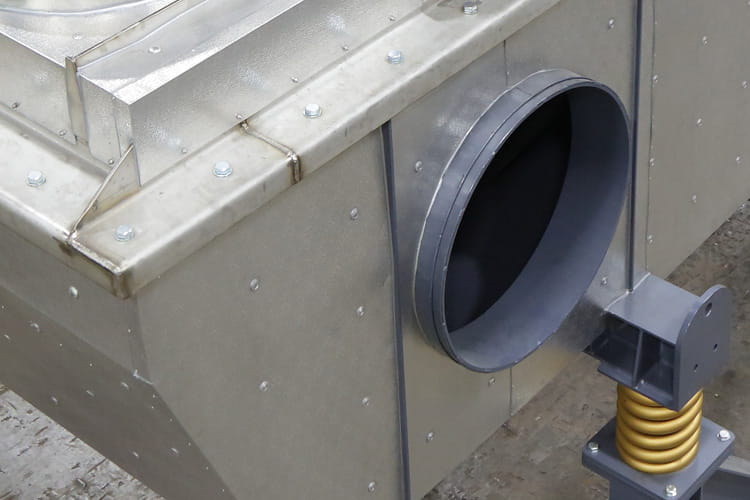

Iso-Max Dynamic Reaction Reducer

Significantly reduce the low dynamic reaction transmitted through the fluid bed isolation springs by up to 96%.

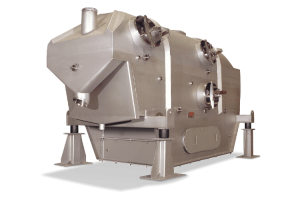

Sanitary Designs

Sanitary, U.S.D.A. (3A) approved vibrating fluid bed dryer construction for food processing.

Materials of Construction

Material contact surfaces can be fabricated from carbon steel, stainless steel, titanium,
Inconel® or a number of other alloys. Specialized coatings are available to reduce product adhesion.

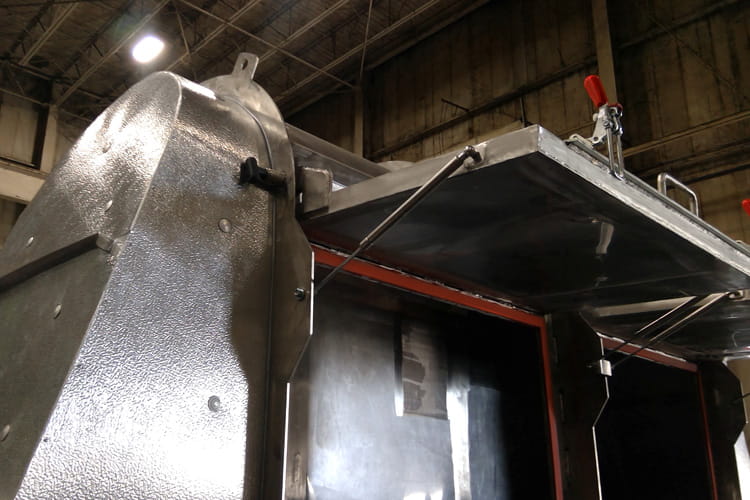

Access Manways & Doors

Access the plenum and deck with a variety of customized manways and doors.

Clean-In-Place

Sistemas de limpieza in situ (CIP) y de extinción de incendios disponibles como parte del secador de lecho fluido vibrante, cuando sea necesario.

Recirculated Gas & Closed-Loop Systems

Hay disponibles sistemas de recirculación de gases y de circuito cerrado para mejorar la eficacia o la recuperación de disolventes.

Gentle or Aggressive Designs

Disponibles en diseños de baja o alta vibración para procesar la más amplia gama de materiales.

Safety Features

All dryer system components can be designed with fire and explosion prevention, detection, and suppression systems.

Custom Controls

Minimize field commissioning work with simple starter panels or customized PLC-based controllers complete with remote startup and engineering services.

Aplicaciones

Animal Feed

Animal feed applications involve the handling and processing of grains, pellets, and powdered ingredients used in livestock, poultry, aquaculture, and pet nutrition.

Bauxita/arcilla

Bauxite and clay applications involve the handling and processing of raw materials used in aluminum production, ceramics, refractories, and specialty industrial products.

Biomasa y madera

Biomass and wood applications involve the handling and processing of organic materials such as wood chips, sawdust, hogged wood, and agricultural residues used in energy production, particleboard, pulp and paper, and other industrial processes.

Catalizadores

Catalyst applications involve the handling and processing of powdered, granular, or pelletized materials used to accelerate chemical reactions in industries such as petrochemical, refining, and chemical manufacturing.

Cement & SCMs

Cool SCMs and cement clinker to prevent grinding instability and optimize downstream efficiency. The vibration assists in fluidization, ensuring uniform heat transfer and preventing pluggage.

Compuestos químicos

Chemical compound applications involve the handling and processing of powders, granules, and blended materials used in specialty chemicals, industrial formulations, and consumer products.

Carbón

Coal applications involve the handling and processing of raw or processed coal used in power generation, steel production, and industrial heating.

Fertilizantes

Fertilizer applications involve the handling and processing of granular, powdered, or pelletized nutrients used in agriculture and horticulture.

Alimentación, productos lácteos y mascotas

Food, dairy, and pet food applications involve the handling and processing of powders, granules, and other bulk ingredients used in human and animal nutrition.

Frac Sand, Sand & Gravel

Frac sand, sand, and gravel applications involve the handling and processing of naturally occurring or manufactured granular materials used in hydraulic fracturing, construction, glass manufacturing, and other industrial applications.

Minerales granulados

Pelletized product applications involve the handling and processing of materials formed into uniform pellets, including fertilizers, feed, biomass, chemicals, and other industrial products.

Productos farmacéuticos

Pharmaceutical applications involve the processing and handling of powders, granules, and active ingredients used in the manufacture of medications, supplements, and other healthcare products.

Pellets de plástico

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Minerales y menas

Minerals and ores applications involve the handling and processing of naturally occurring raw materials used in metal production, chemicals, ceramics, and industrial products

Residuos, vidrio reciclado

Refuse and recycled glass applications involve the handling and processing of post-consumer or industrial waste materials, including crushed glass, cullet, and mixed refuse, for recycling into new products or for industrial reuse.

Goma y caucho

Rubber and crumb rubber applications involve the handling and processing of natural or synthetic rubber, including recycled crumb rubber, used in tires, mats, molded products, and industrial components.

Folletos

Vibrating Fluid Bed Brochure

Carrier Capabilties Brochure

CPEG Capabilties Brochure

Galería

Vibrating Fluid Bed Coolers FAQs

When should I choose a vibrating fluid bed cooler over other cooling methods?

Vibrating fluid bed coolers are ideal when materials are difficult to fluidize, exhibit a wide particle-size distribution, or require gentle handling. The added vibration improves fluidization and ensures consistent cooling across all particles.

How does vibration improve the cooling performance?

Vibration keeps material evenly distributed and continuously mixed, eliminating hot spots and ensuring uniform heat transfer throughout the bed.

What cooling media are used?

Typically ambient or conditioned air. Optional water-cooled sections or heat exchangers can be integrated depending on the process.

Can vibrating fluid bed coolers handle fragile or temperature-sensitive materials?

Yes. Low amplitude vibration and reduced airflow velocity create a gentle fluidized bed, minimizing product degradation during cooling.

Are these equipment energy efficient?

Yes. Lower fluidizing velocities reduce horsepower requirements and improve thermal efficiency compared to other cooling methods.

How precise is temperature control?

Carrier coolers offer tight control over outlet temperature using adjustable airflow, bed depth, vibration intensity, and multiple cooling zones.

Are there multiple cooling zones available?

Yes. Multi-zone designs allow staged cooling for better efficiency and consistent outlet temperature.

Can the equipment be customized for specific materials or processes?

Carrier designs vibrating fluid bed coolers with custom airflow, deck configurations, and vibration controls to match exact material and process requirements.
